Welcome to the OpenClaw AWS Deployment Guide

Integrate OpenClaw with AWS for seamless, automated operations. Empower teams with real-time collaboration and workflow orchestration in trusted, enterprise-ready environments. Let's dive in.

Launching the AMI

Step 1: Find and Select "OpenClaw" AMI

1. Log in to your AWS Management Console.
2. Navigate to the 'OpenClaw' in AWS Marketplace.

Step 2: Initial Setup & Configuration

1. Click the "Continue to Subscribe" button.
2. After subscribing, you will need to accept the terms and conditions. Click on "Accept Terms" to proceed.

3. Please wait for a few minutes while the processing takes place. Once it's completed, click on "Continue to Configuration".
4. Select the "CloudFormation script to deploy OpenClaw" as the fulfilment option and choose your preferred region on the "Configure this software" page. Afterward, click the "Continue to Launch" button.

5. From the "Choose Action" dropdown menu in "Launch this software" page, select "Launch CloudFormation" and click "Launch" button.

Create CloudFormation Stack

Step 1: Create stack

1. Ensure the "Template is ready" radio button is selected under "Prepare template".
2. Click "Next".

Step 2: Specify stack options

Provide the necessary parameters for your OpenClaw deployment. These settings define how your instance will be configured.

Step 3: Configure stack options

1. Choose "Roll back all stack resources" and "Delete all newly created resources" under the "Stack failure options" section.
2. Click "Next".

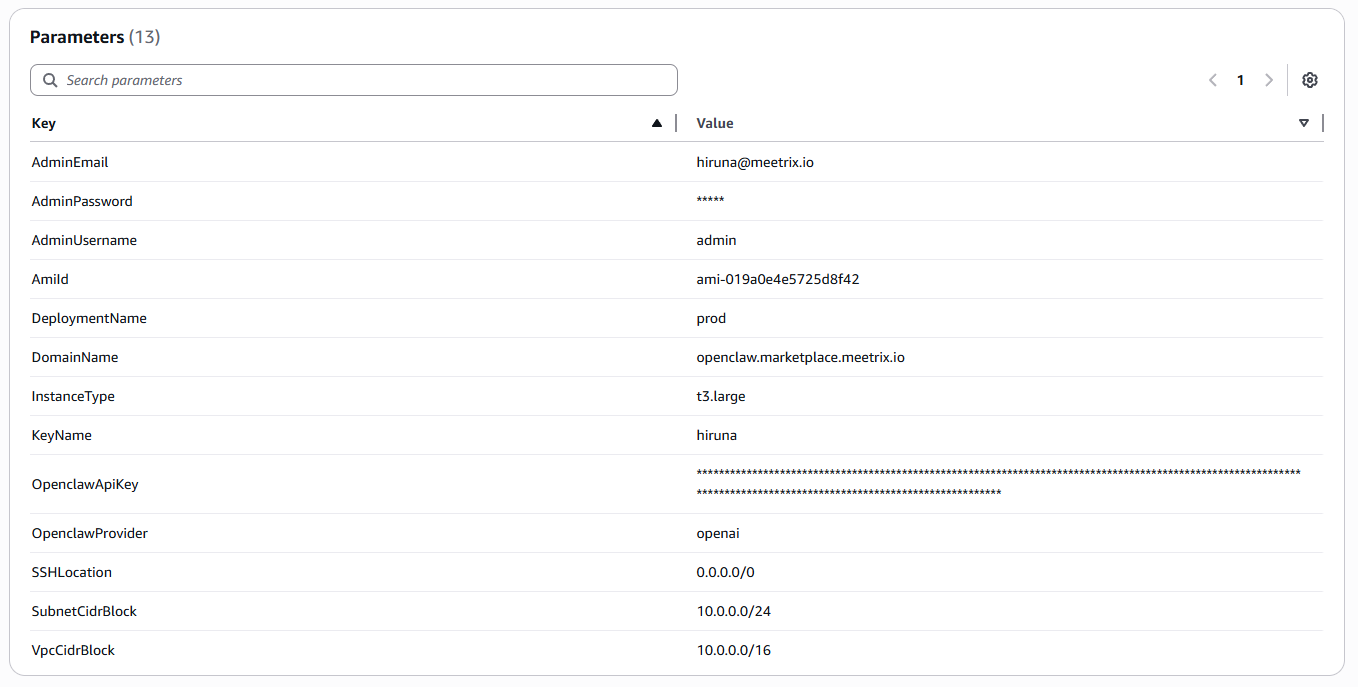

Step 4: Review

1. Review and verify the details you've entered.

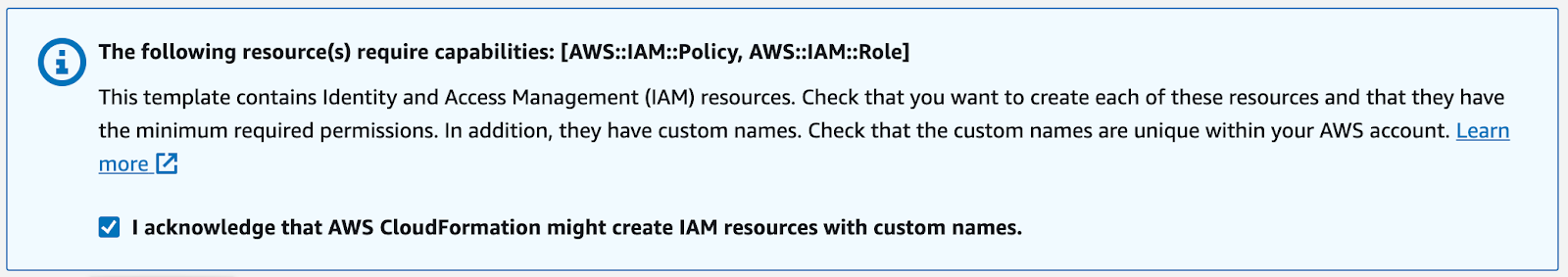

2. Tick the box that says, "I acknowledge that AWS CloudFormation might create IAM resources with custom names".

3. Click "Submit".

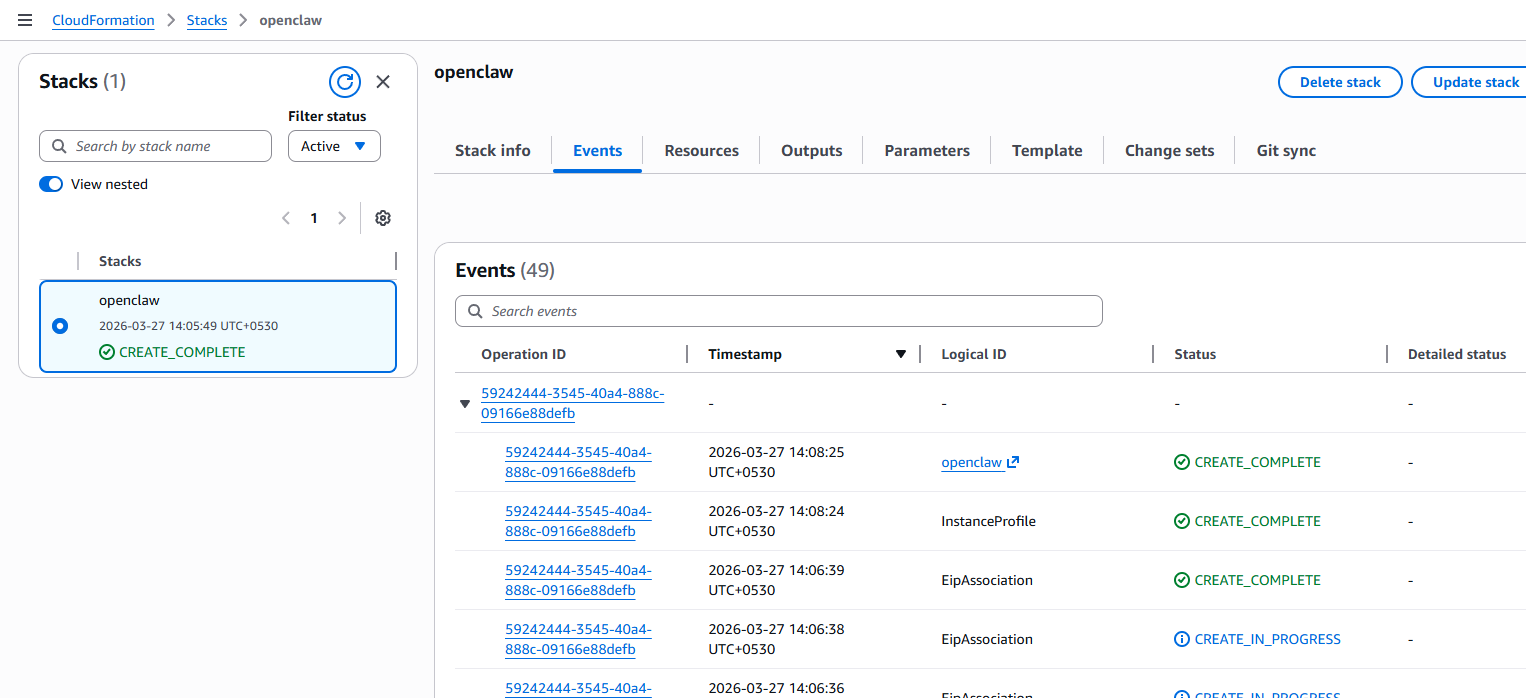

Afterward, you'll be directed to the CloudFormation stacks page. Please wait for 5-10 minutes until the stack has been successfully created.

Update DNS

Step 1: Copy IP Address

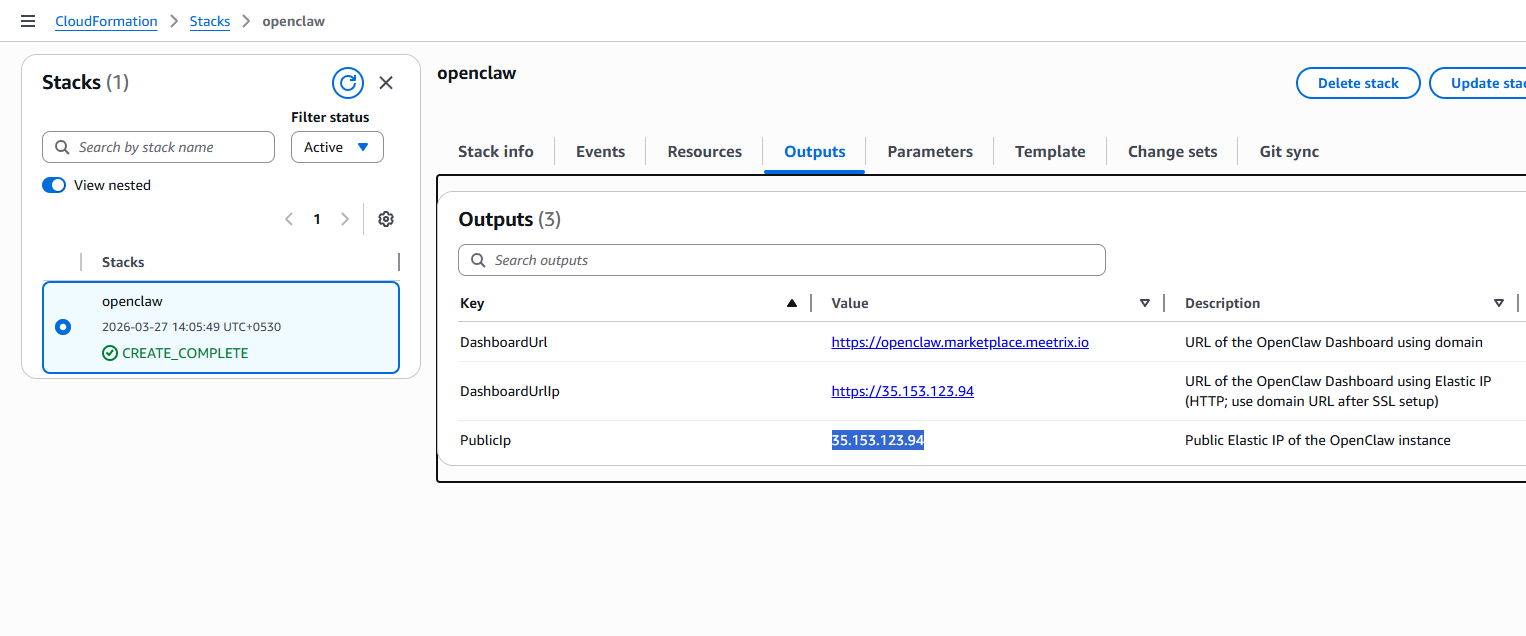

Copy the public IP labeled "PublicIp" in the "Outputs" tab.

Step 2: Update DNS

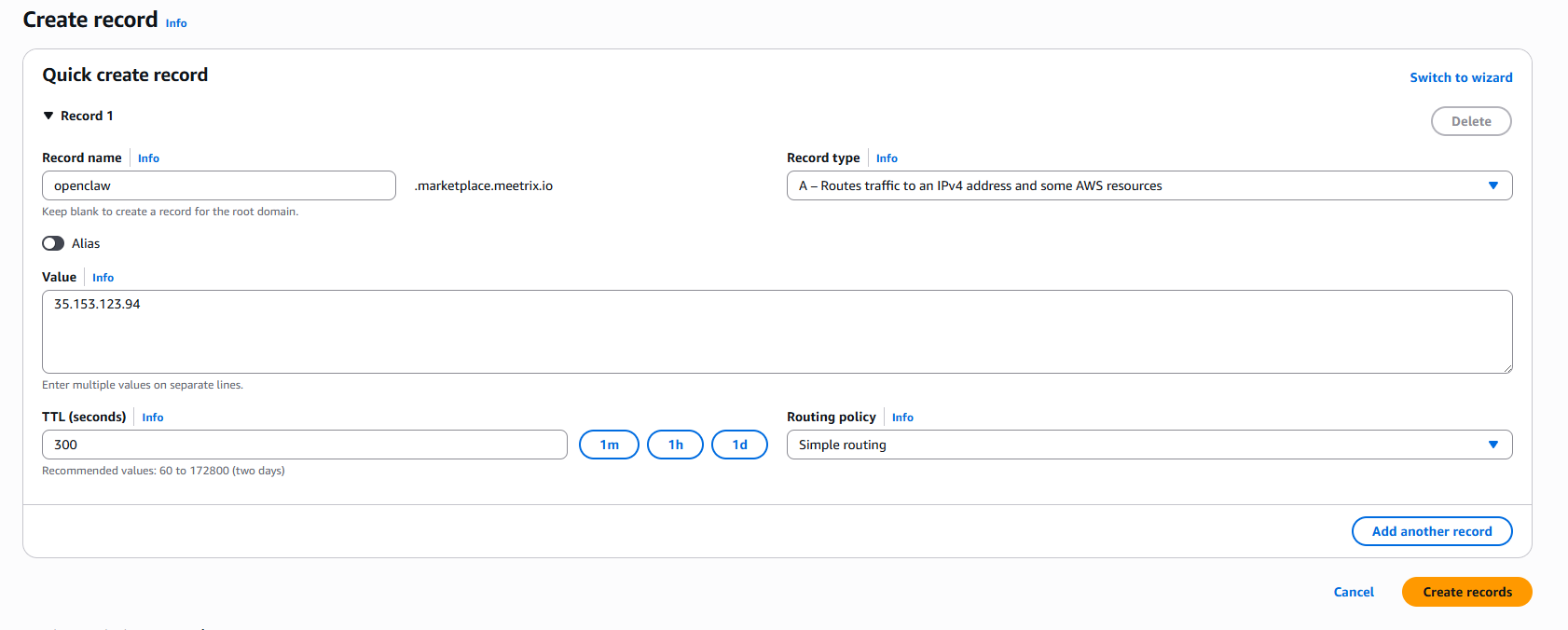

1. Go to AWS Route 53 and navigate to "Hosted Zones". Click on the correct hosted zone.
2. From there, click on Create record.

3. Add the record name and then paste the copied "PublicIp" into the "value" textbox.
4. Click "Save".

Access OpenClaw

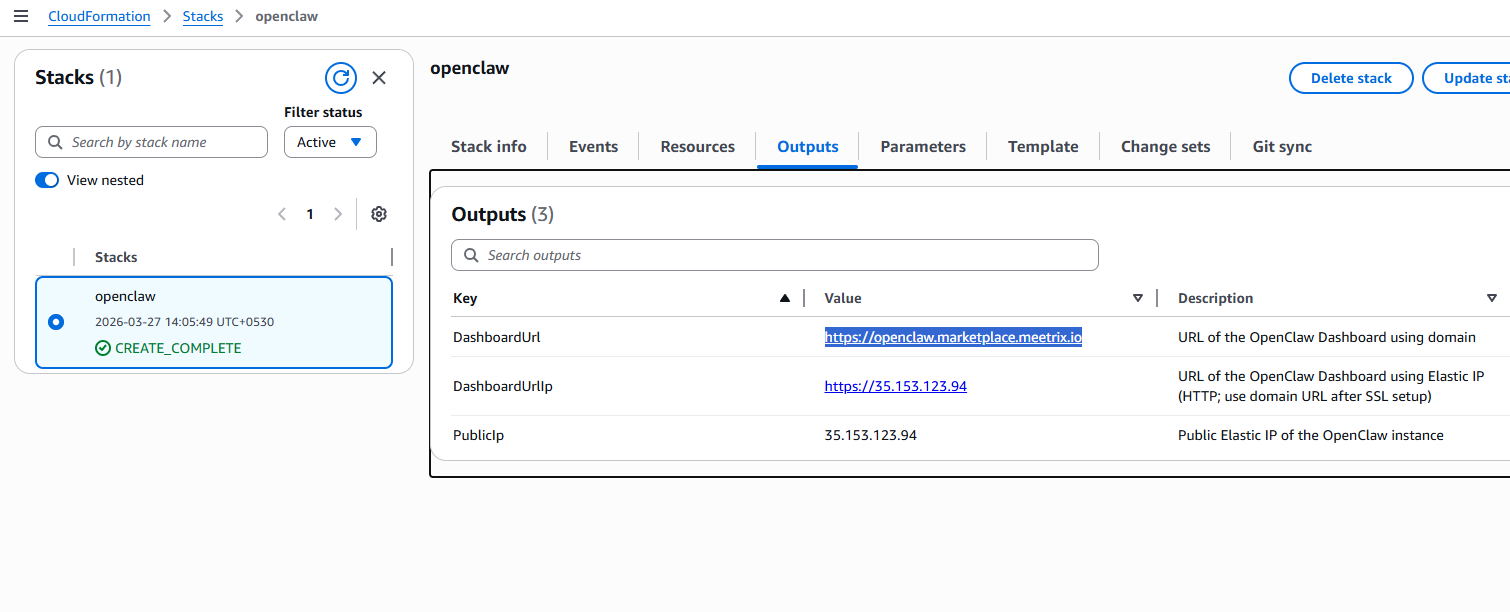

You can setup the OpenClaw application through the "DashboardUrl" or "DashboardUrlIp" provided in the "Outputs" tab.

502 Bad Gateway Error?

If you see a "502 Bad Gateway" error, don't worry! The application is likely still starting up. Please wait about 5 minutes and then refresh the page.

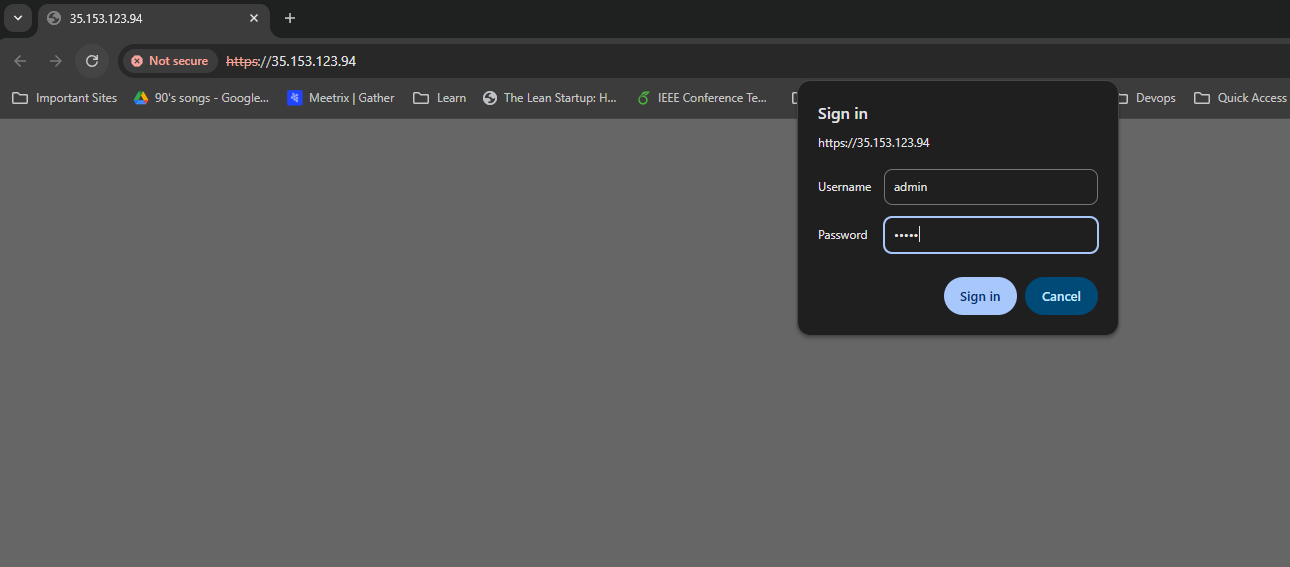

1. Enter the Admin Username and Password you previously entered.

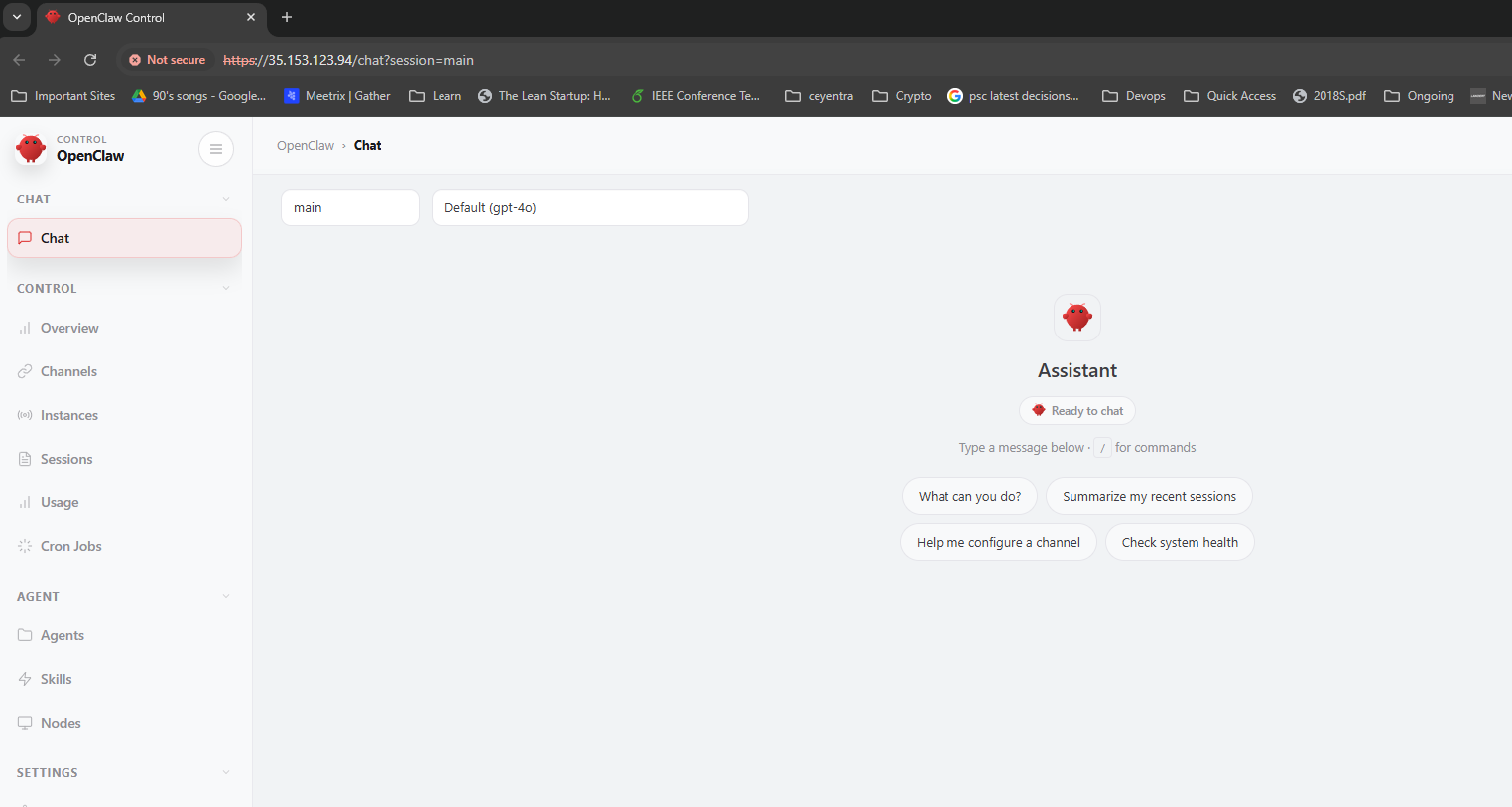

2. Then you will be redirected to the dashboard.

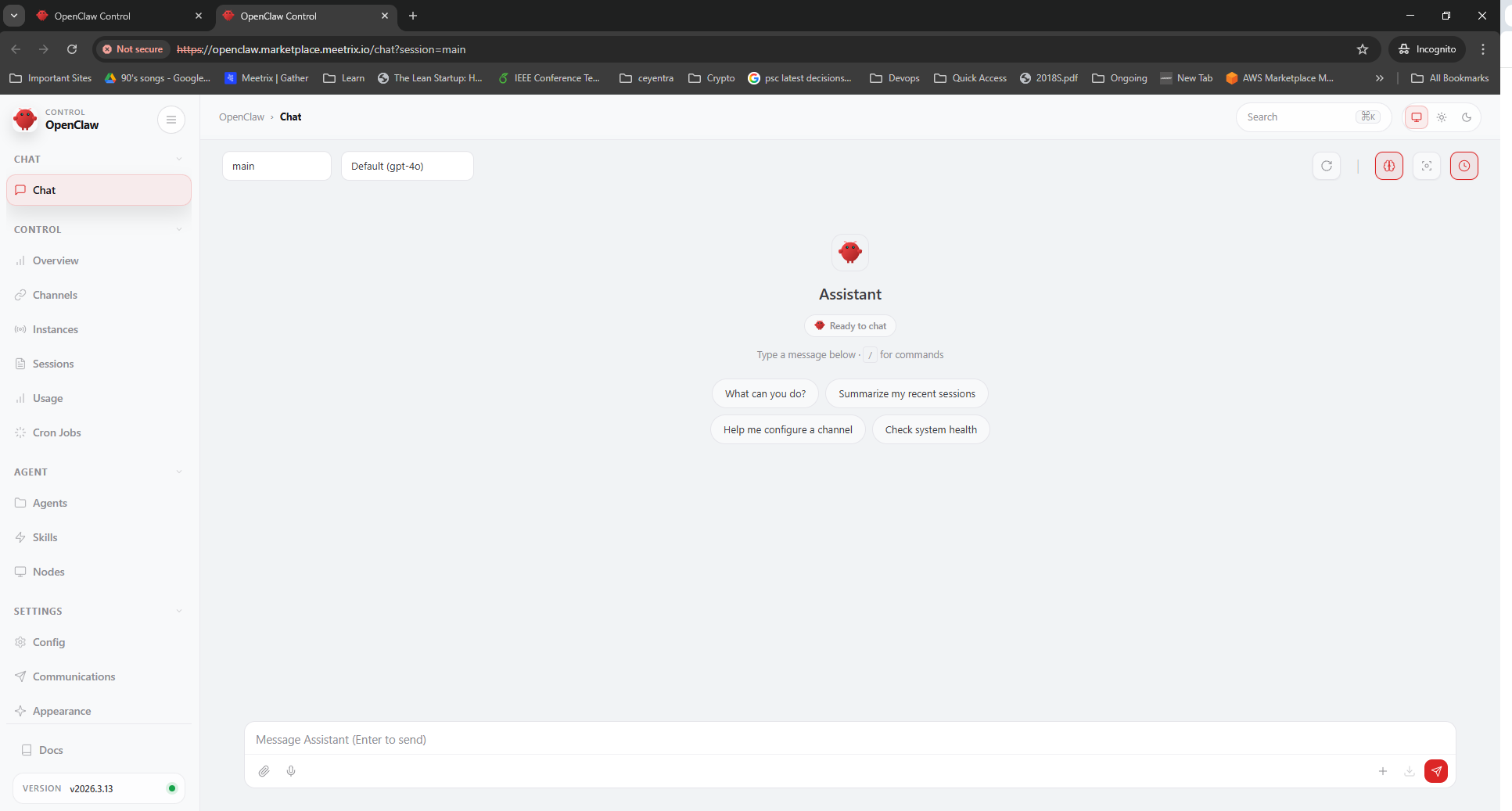

3. You may also access the dashboard through the domain.

Add Channels

1. Create a telegram bot and get the token (Please refer to the official documentations for this).
2. Replace the "paste-token-here" with the token.

{
  "channels": {
    "telegram": {
      "enabled": true,
      "botToken": "paste-token-here",
      "dmPolicy": "pairing",
      "groups": {
        "*": {
          "requireMention": true
        }
      }
    }
  }
}

3. Go to Config in OpenClaw dashboard and select the Raw mode.
4. Click on reveal sensitive values.
5. Paste the above lines after the "update" part in the JSON file and click on save.
6. You have to wait several minutes while the service restarts.
7. Now you can configure the AI agent to work with the telegram bot.

Generate SSL Manually

Step 1: Copy IP Address

OpenClaw will automatically try to setup SSL; if unsuccessful, you have to setup SSL manually. Proceed with the instructions outlined in the above "Update DNS" section, if you have not already done so. Copy the Public IP address indicated as "PublicIp" in the "Outputs" tab.

Step 2: Log in to the server

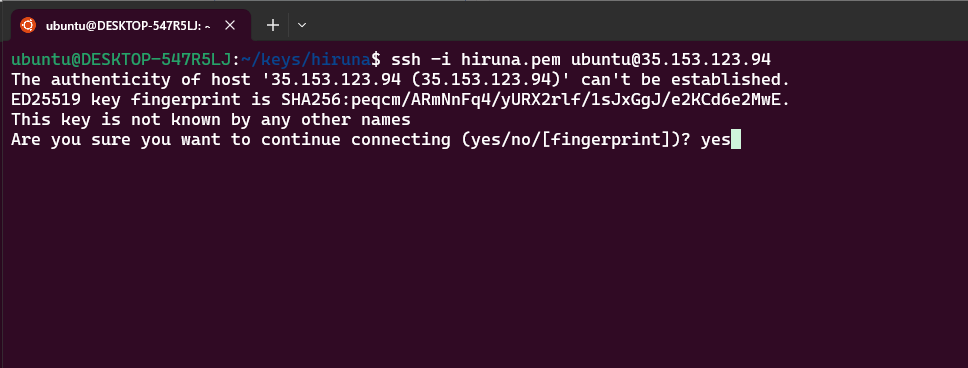

1. Open the terminal and go to the directory where your private key is located.
2. Paste the following command into your terminal and press Enter:

ssh -i <your key name> ubuntu@<Public IP address>

3. Type "yes" and press Enter. This will log you into the server.

Step 3: Generate SSL

Paste the following command into your terminal and press Enter and follow the instructions:

sudo /root/certificate_generate_standalone.sh

Admin Email is needed to generate SSL certificates.

Check Server Logs

OpenClaw runs as a systemd user service. Use the commands below to diagnose issues.

1. OpenClaw Gateway Logs

Check the status of the OpenClaw gateway service:

systemctl --user status openclaw-gateway

View live logs (follow mode):

journalctl --user -u openclaw-gateway -f

View recent logs (last 100 lines):

journalctl --user -u openclaw-gateway -n 100

2. Nginx Logs

Check nginx access and error logs:

sudo tail -f /var/log/nginx/access.log
sudo tail -f /var/log/nginx/error.log

If you see 502 Bad Gateway errors, the OpenClaw gateway is not running. Restart it with the following command:

systemctl --user restart openclaw-gateway

3. Channel Logs (Telegram, Discord, etc.)

If you have messaging channels configured, view their logs with:

openclaw channels logs

4. Restarting the Service

If the gateway is unresponsive or you have updated the configuration:

systemctl --user restart openclaw-gateway

Shutting Down OpenClaw

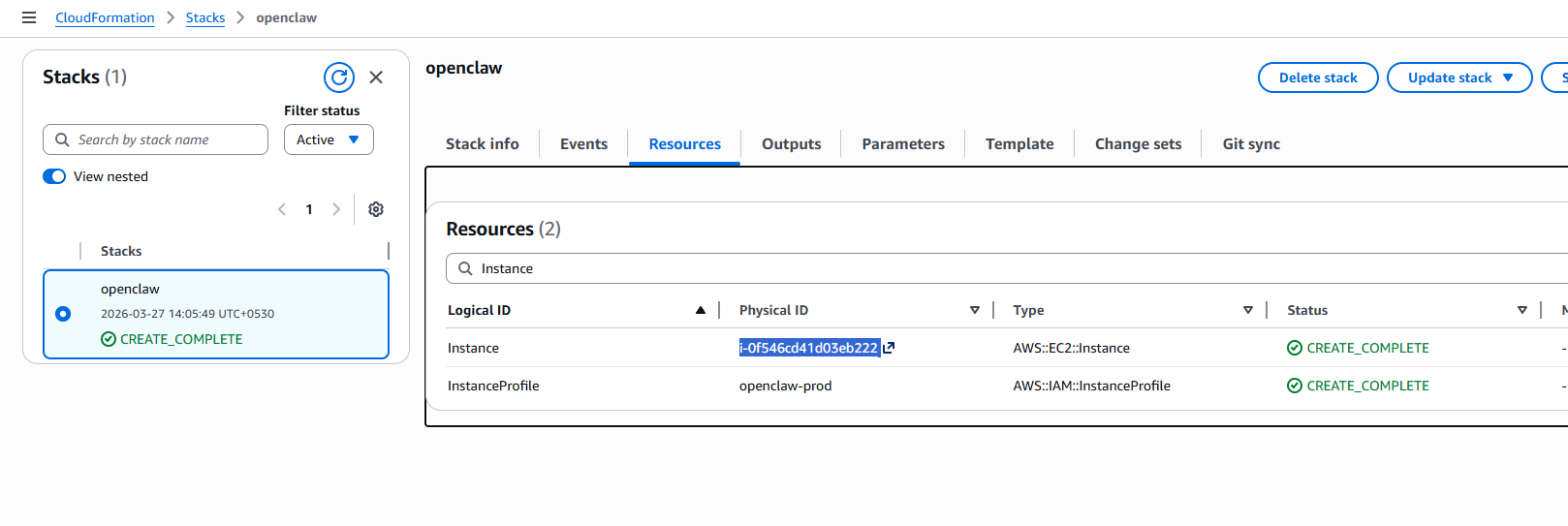

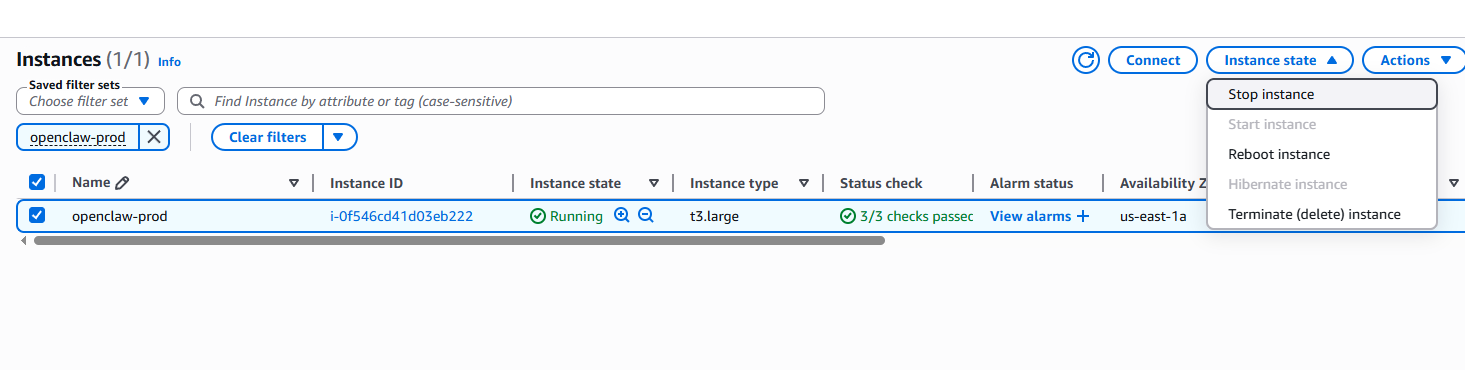

1. Click the link labeled "Instance" in the "Resources" tab to access the EC2 instance; you will be directed to the OpenClaw instance in EC2.

2. Select the OpenClaw instance by marking the checkbox and click "Stop instance" from the "Instance state" dropdown. You can restart the instance at your convenience by selecting "Start instance".

Remove OpenClaw

Delete the stack that has been created in the AWS Management Console under 'CloudFormation Stacks' by clicking the 'Delete' button.

Upgrades

When there is an upgrade, we will update the product with a newer version. You can check the product version in AWS Marketplace. If a newer version is available, you can remove the previous version and launch the product again using the newer version. Remember to backup the necessary server data before removing.

Troubleshoot

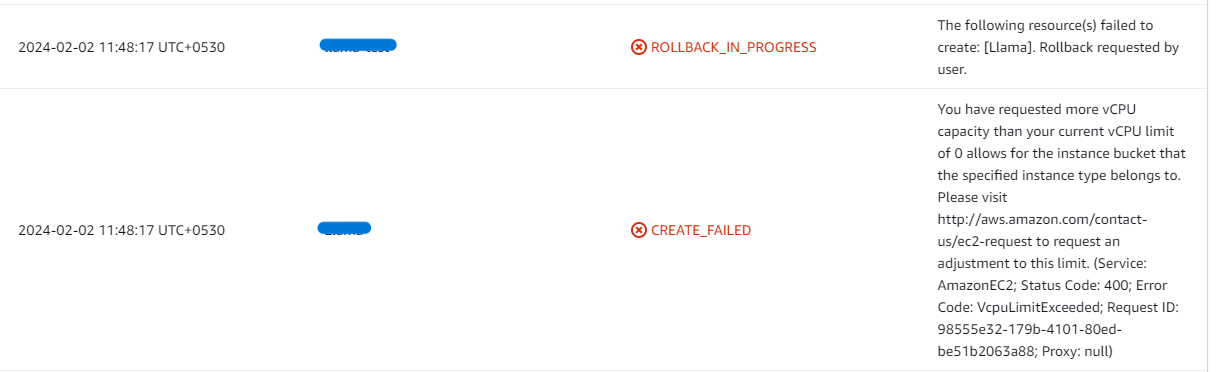

1. If you face the following error, please follow this blog to increase vCPU quota.

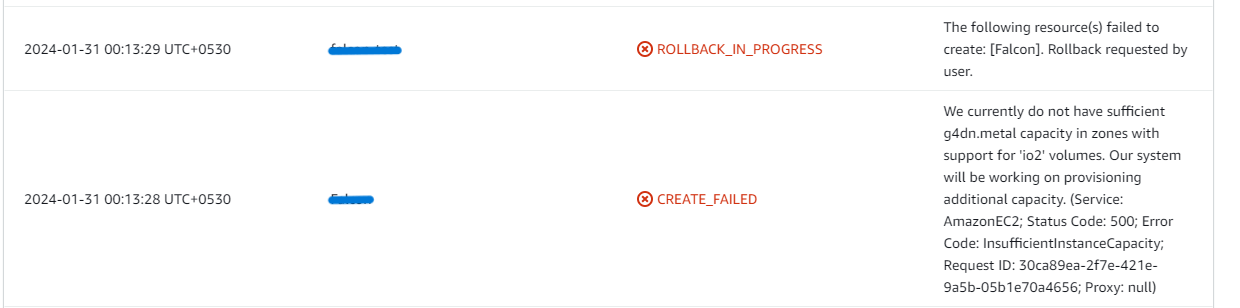

2. If you face the following error (do not have sufficient <instance_type> capacity...) while creating the stack, try changing the region or try creating the stack at a later time.

3. If you face the below error, when you try to access the API dashboard, please wait 5-10 minutes and then try.

4. Check whether the instance storage is full.
   • Log into the server and run the below command

     df -h

   • If the root volume is between 90-100%, it is better to resize EBS volume. Please follow AWS documentation to increase the EBS volume.

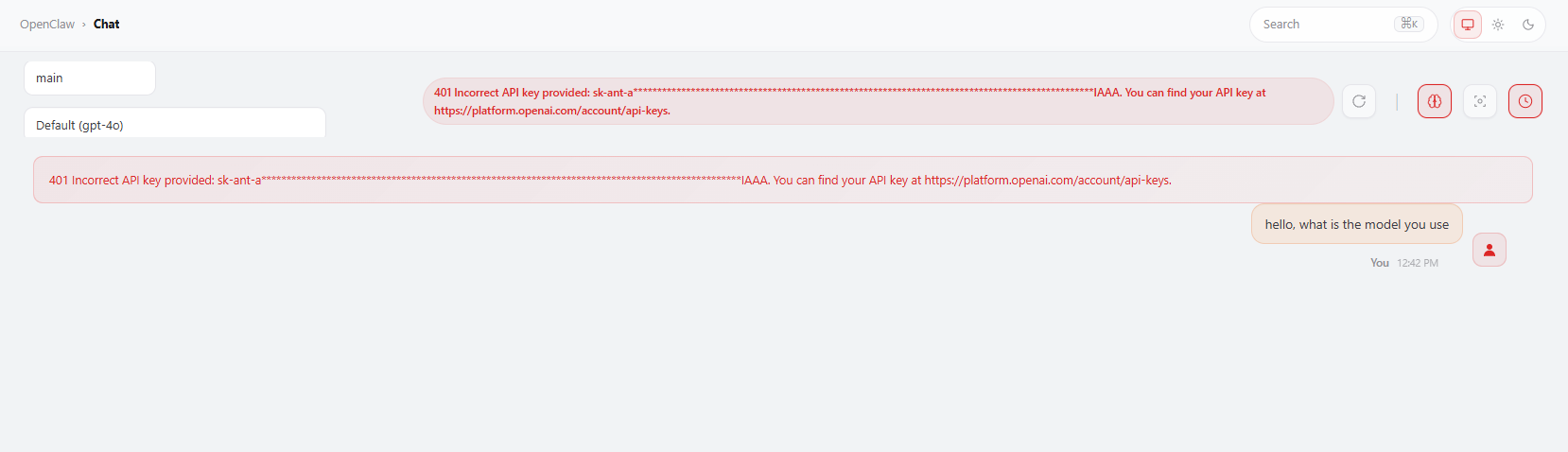

5. If you cannot use the chat and face "Incorrect API key provided" error,
   • You may have added a wrong/revoked API key
   • You may have added the correct API key, but selected the wrong provider
   Please remove the deployment and launch the application from the beginning.
   ex: In the above screenshot, I have added a correct "anthropic" API key, but selected "openai" as the provider.

Conclusion

The Meetrix OpenClaw Deployment Guide is your definitive resource for launching OpenClaw on AWS with ease. Designed for developers, DevOps engineers, and IT teams, it provides clear, step-by-step instructions to achieve a secure, scalable, and efficient deployment. OpenClaw is a powerful AI application platform that enables organizations to build, manage, and scale AI-driven workflows and agents. Using this guide, you can unlock OpenClaw's full potential, allowing your team to rapidly deploy AI solutions, streamline operations, and create flexible, production-ready systems that evolve with your needs.

Technical Support

Reach out to Meetrix Support (aws@meetrix.io) for assistance with OpenClaw issues.
